详细信息
 |  |  |  |
规格参数
material height | 10-160mm |
applicable materials | Stainless steel, galvanized sheet, iron, aluminum, copper and other Metal coil; edge aluminum , aluminum profile or other special-shaped profile |
file format | dxf、ai |
Minimum Bending Radius | R≧3MM |
Material Thickness | SS:0.3-1.2mm Alu:0.3-1.5mm |
Peak Power | 3000W |
Length Accuracy | 0.1mm/M |

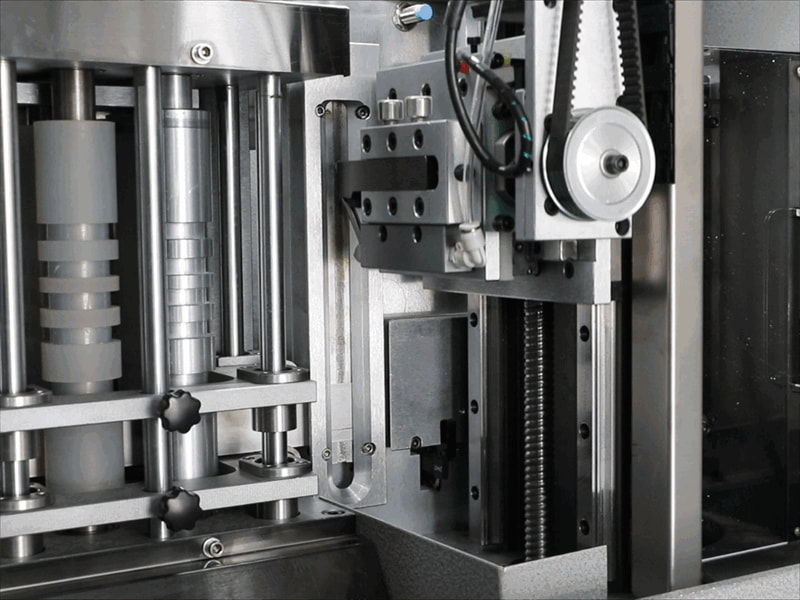

Feeding system | Roller feeding system |

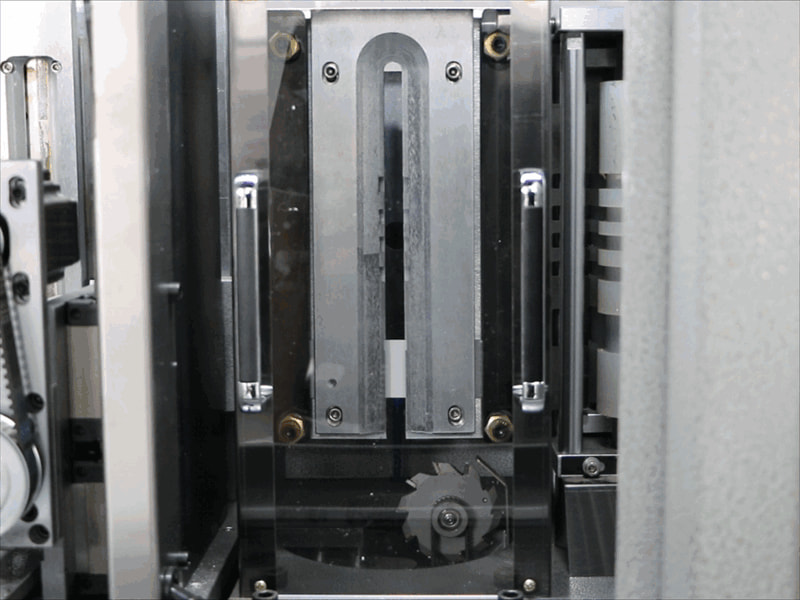

Slotting system | Servo planer and milling cutter swing angle double tool system |

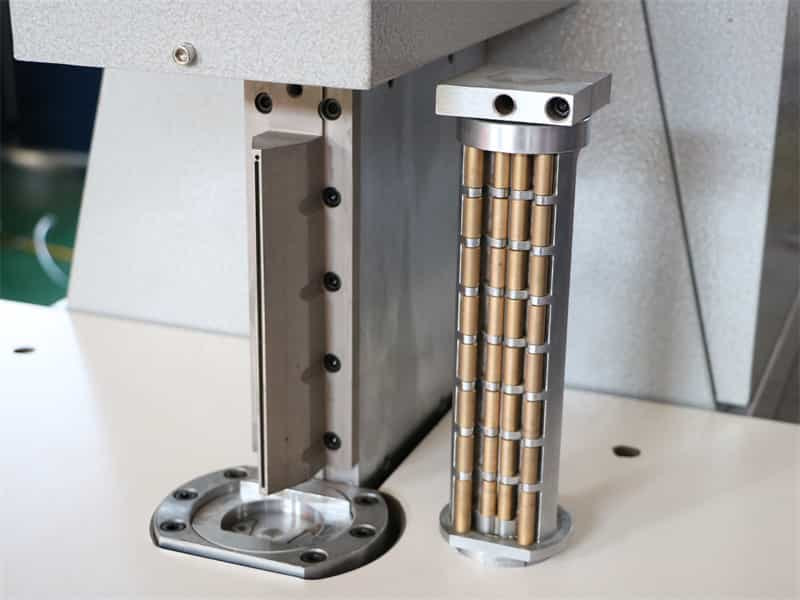

Bending system | Servo double knife alternation and copper shaft rolling double bending system |
Dimensions | 1900mm*900mm*1600mm |
Surface Treatment of Work-piece | Hard chrome plated overall |
N.Weight | 580kg |
Power | AC220V |
Working Pressure | 0.3-0.8Mpa |
